High Frequency Cards
Product Information
High-frequency RFID cards operating at 13.56MHz are primarily used for HF standards such as ISO14443A, ISO14443B, ISO15693, and ISO18092, each associated with distinct IC cards. These cards offer notable benefits, including read-write capability, ample storage, and encryption functionality. They are well-suited for various applications, including access control, attendance management, identity recognition, school and community management, membership management, and point-of-sale systems.
Standard Features
- Operating Frequency: 13.56Mhz
- Chip options: ISO14443A: MIFARE Classic®, MIFARE® DESFire®, MIFARE Plus®, MIFARE Ultralight®, etc.
- ISO14443B: SR176, SRI512, SRI1K, SRI2K, SRI4K, SRIX4K, etc.
- ISO18092: NTAG® 203, NTAG® 210, NTAG® 212, NTAG® 213, NTAG® 215, NTAG® 216, Topaz512, etc.
- ISO15693: NXP ICODE® SLI, TI Tag it HF-I, ST LRI, etc.
- Protocol: ISO14443A, ISO14443B, ISO15693, and ISO18092
- Materials: PVC, PET, ABS, PETG, etc.
- Surface Options: Gloss, Matte
- Dimensions: CR80 85.5 x 54mm
- Thickness: 0.84 ~ 0.86mm
- Data Storage Time: Up to 10 years
Personalization Process
Printing
- Logo/Text/Photo
- Serial Number
- Embossing
- Barcode Printing
- Glossy Lamination
- Signature Strip
- Personalized Signature
- Personalized Photo
Magnetic Stripe
- Low Coercivity (LoCo) 300oe, 650oe
- High Coercivity (HiCo) 2750oe, 4000oe
- Magnetic Encoding
Other Crafts
- Laser Engraving
- Anti-counterfeiting Printing
- Chip Encoding
Applications

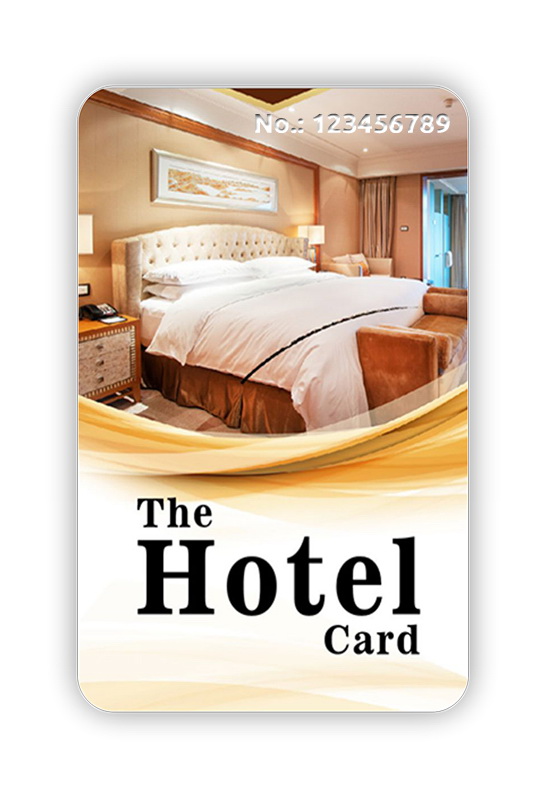

- Hotel Card

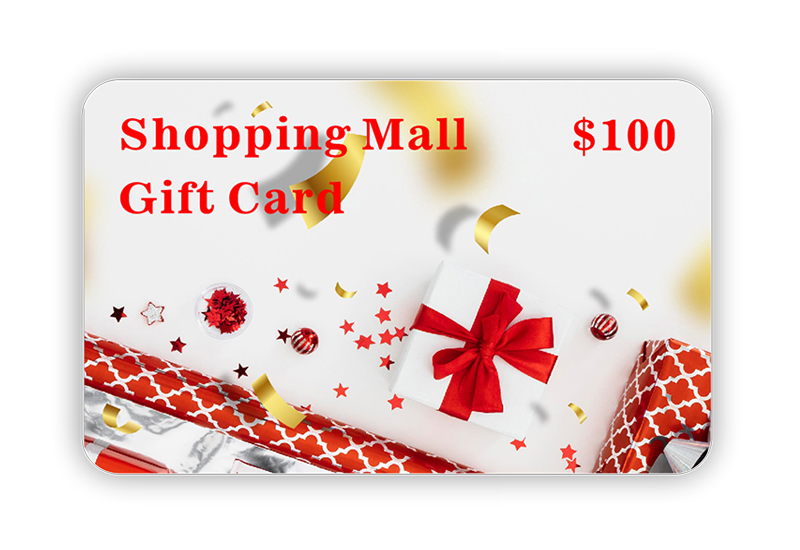

- Shopping Gift card
- Membership Systems
- Payments
- Transportation
- NFC
